1. Material Fundamentals and Microstructural Features of Alumina Ceramics
1.1 Composition, Purity Qualities, and Crystallographic Residence

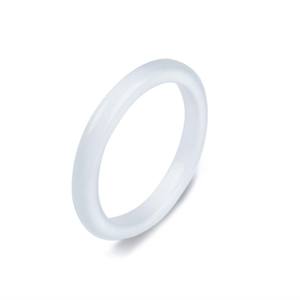

(Alumina Ceramic Wear Liners)
Alumina (Al â‚‚ O FOUR), or aluminum oxide, is one of one of the most widely made use of technical ceramics in industrial design due to its superb balance of mechanical stamina, chemical stability, and cost-effectiveness.
When engineered right into wear liners, alumina ceramics are generally produced with purity levels ranging from 85% to 99.9%, with higher purity corresponding to boosted firmness, put on resistance, and thermal efficiency.
The leading crystalline phase is alpha-alumina, which embraces a hexagonal close-packed (HCP) structure defined by solid ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina porcelains contain fine, equiaxed grains whose size and circulation are regulated throughout sintering to maximize mechanical residential or commercial properties.
Grain dimensions commonly range from submicron to a number of micrometers, with finer grains typically boosting fracture sturdiness and resistance to crack proliferation under abrasive packing.
Small ingredients such as magnesium oxide (MgO) are usually introduced in trace total up to prevent abnormal grain growth throughout high-temperature sintering, making sure consistent microstructure and dimensional security.
The resulting product exhibits a Vickers firmness of 1500– 2000 HV, considerably exceeding that of hardened steel (generally 600– 800 HV), making it exceptionally immune to surface area degradation in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are selected largely for their exceptional resistance to unpleasant, abrasive, and gliding wear mechanisms common in bulk material taking care of systems.
They have high compressive strength (approximately 3000 MPa), good flexural toughness (300– 500 MPa), and excellent rigidity (Youthful’s modulus of ~ 380 GPa), allowing them to stand up to intense mechanical loading without plastic contortion.
Although inherently weak compared to steels, their reduced coefficient of friction and high surface firmness minimize bit bond and lower wear prices by orders of magnitude relative to steel or polymer-based alternatives.
Thermally, alumina keeps architectural stability as much as 1600 ° C in oxidizing atmospheres, permitting use in high-temperature handling environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing tools.

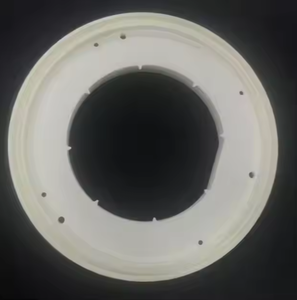

( Alumina Ceramic Wear Liners)
Its low thermal growth coefficient (~ 8 × 10 â»â¶/ K) adds to dimensional security throughout thermal cycling, reducing the threat of splitting due to thermal shock when appropriately installed.
In addition, alumina is electrically insulating and chemically inert to many acids, alkalis, and solvents, making it ideal for destructive atmospheres where metallic liners would certainly deteriorate rapidly.
These combined residential or commercial properties make alumina ceramics perfect for safeguarding important facilities in mining, power generation, cement manufacturing, and chemical processing markets.
2. Production Processes and Style Combination Methods
2.1 Shaping, Sintering, and Quality Control Protocols
The production of alumina ceramic wear liners includes a sequence of precision production steps developed to achieve high thickness, very little porosity, and regular mechanical performance.
Raw alumina powders are processed via milling, granulation, and developing techniques such as dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– ceramic tiles, plates, pipes, or custom-shaped sectors.
Green bodies are then sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing family member densities going beyond 95%, often approaching 99% of academic thickness.
Full densification is vital, as recurring porosity works as stress and anxiety concentrators and increases wear and fracture under service conditions.
Post-sintering operations may consist of diamond grinding or washing to attain limited dimensional resistances and smooth surface area coatings that decrease rubbing and particle trapping.
Each batch goes through rigorous quality assurance, consisting of X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural assessment, and firmness and bend testing to validate conformity with global standards such as ISO 6474 or ASTM B407.
2.2 Placing Strategies and System Compatibility Factors To Consider
Efficient combination of alumina wear liners into commercial tools needs careful focus to mechanical add-on and thermal expansion compatibility.
Usual installation methods consist of glue bonding using high-strength ceramic epoxies, mechanical fastening with studs or anchors, and embedding within castable refractory matrices.
Sticky bonding is commonly made use of for level or gently curved surfaces, offering consistent anxiety circulation and vibration damping, while stud-mounted systems allow for very easy substitute and are chosen in high-impact zones.
To accommodate differential thermal expansion between alumina and metallic substratums (e.g., carbon steel), crafted spaces, flexible adhesives, or certified underlayers are incorporated to prevent delamination or breaking throughout thermal transients.
Developers should additionally consider edge security, as ceramic floor tiles are prone to cracking at exposed edges; solutions include diagonal edges, metal shrouds, or overlapping tile configurations.
Proper setup makes certain long life span and maximizes the protective function of the lining system.
3. Put On Systems and Performance Assessment in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear linings master atmospheres dominated by 3 main wear systems: two-body abrasion, three-body abrasion, and bit erosion.
In two-body abrasion, hard bits or surfaces directly gouge the liner surface area, an usual incident in chutes, hoppers, and conveyor shifts.
Three-body abrasion entails loosened fragments entraped between the lining and relocating product, leading to rolling and scratching action that gradually gets rid of material.
Abrasive wear occurs when high-velocity particles strike the surface area, specifically in pneumatically-driven conveying lines and cyclone separators.
Due to its high firmness and low crack durability, alumina is most efficient in low-impact, high-abrasion scenarios.
It does incredibly well versus siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be lowered by 10– 50 times contrasted to mild steel liners.
Nevertheless, in applications entailing duplicated high-energy effect, such as key crusher chambers, crossbreed systems combining alumina tiles with elastomeric backings or metallic shields are commonly utilized to soak up shock and prevent crack.
3.2 Area Testing, Life Cycle Evaluation, and Failure Setting Evaluation
Efficiency assessment of alumina wear linings involves both laboratory screening and field monitoring.
Standardized tests such as the ASTM G65 dry sand rubber wheel abrasion examination provide comparative wear indices, while customized slurry erosion gears replicate site-specific conditions.
In commercial settings, wear rate is usually determined in mm/year or g/kWh, with life span estimates based upon initial density and observed destruction.
Failing modes include surface sprucing up, micro-cracking, spalling at edges, and full ceramic tile dislodgement as a result of adhesive destruction or mechanical overload.
Source analysis usually reveals installation mistakes, inappropriate quality option, or unexpected impact loads as primary contributors to premature failing.
Life cycle price evaluation consistently demonstrates that in spite of greater initial costs, alumina liners provide remarkable total expense of possession due to extensive replacement periods, reduced downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear liners are deployed across a wide spectrum of commercial markets where material deterioration presents functional and financial difficulties.
In mining and mineral handling, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from unpleasant slurries containing quartz, hematite, and various other hard minerals.
In nuclear power plant, alumina ceramic tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator parts revealed to fly ash erosion.
Cement producers utilize alumina liners in raw mills, kiln inlet areas, and clinker conveyors to battle the very abrasive nature of cementitious materials.
The steel market uses them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal tons is vital.
Also in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide durable security against chemically aggressive and fibrous materials.
4.2 Emerging Patterns: Compound Systems, Smart Liners, and Sustainability
Current study focuses on enhancing the strength and functionality of alumina wear systems through composite design.
Alumina-zirconia (Al ₂ O ₃-ZrO ₂) compounds take advantage of makeover strengthening from zirconia to improve crack resistance, while alumina-titanium carbide (Al ₂ O ₃-TiC) qualities supply improved performance in high-temperature moving wear.
One more innovation involves installing sensing units within or underneath ceramic linings to monitor wear progression, temperature, and influence frequency– enabling anticipating maintenance and electronic double assimilation.
From a sustainability perspective, the prolonged service life of alumina liners lowers material consumption and waste generation, aligning with circular economy concepts in industrial operations.
Recycling of spent ceramic linings right into refractory aggregates or building materials is likewise being discovered to reduce environmental footprint.
Finally, alumina ceramic wear linings represent a keystone of modern-day industrial wear defense technology.
Their phenomenal hardness, thermal security, and chemical inertness, combined with fully grown manufacturing and setup practices, make them essential in combating product deterioration across hefty industries.
As product science advances and digital monitoring becomes extra integrated, the next generation of clever, resistant alumina-based systems will certainly further boost functional effectiveness and sustainability in unpleasant atmospheres.
