1. Product Science and Structural Properties
1.1 Crystal Framework and Chemical Stability

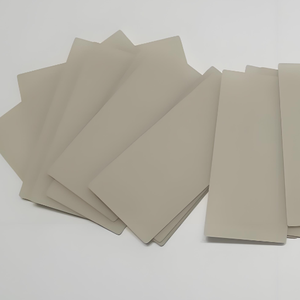

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of rotating layers of light weight aluminum and nitrogen atoms bonded through solid covalent interactions.
This durable atomic setup enhances AlN with phenomenal thermal security, keeping architectural integrity up to 2200 ° C in inert ambiences and resisting decomposition under severe thermal biking.
Unlike alumina (Al two O THREE), AlN is chemically inert to thaw steels and several responsive gases, making it ideal for severe atmospheres such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– developing just a slim safety Al â‚‚ O four layer at surface area upon direct exposure to air– guarantees lasting dependability without significant degradation of bulk homes.
Furthermore, AlN shows superb electric insulation with a resistivity exceeding 10 ¹ⴠΩ · cm and a dielectric toughness above 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
One of the most specifying feature of aluminum nitride is its superior thermal conductivity, typically varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times higher than that of alumina (≈ 30 W/(m · K)).
This efficiency stems from the low atomic mass of nitrogen and aluminum, integrated with strong bonding and marginal factor problems, which permit efficient phonon transport via the latticework.
Nonetheless, oxygen impurities are especially damaging; also trace quantities (above 100 ppm) replacement for nitrogen sites, producing light weight aluminum openings and spreading phonons, thereby dramatically reducing thermal conductivity.
High-purity AlN powders synthesized via carbothermal decrease or direct nitridation are necessary to achieve ideal warmth dissipation.
Regardless of being an electrical insulator, AlN’s piezoelectric and pyroelectric properties make it beneficial in sensing units and acoustic wave tools, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency electronic systems.
2. Construction Procedures and Production Difficulties

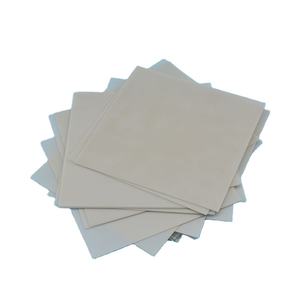

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, generally accomplished via reactions such as Al ₂ O SIX + 3C + N TWO → 2AlN + 3CO (carbothermal reduction) or straight nitridation of light weight aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be very carefully grated and doped with sintering help like Y TWO O FIVE, CaO, or rare planet oxides to promote densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients create short-term liquid phases that enhance grain boundary diffusion, enabling complete densification (> 99% theoretical thickness) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich environments can better minimize oxygen web content by getting rid of intergranular oxides, consequently recovering peak thermal conductivity.
Attaining consistent microstructure with controlled grain dimension is crucial to balance mechanical toughness, thermal efficiency, and manufacturability.
2.2 Substratum Forming and Metallization
When sintered, AlN ceramics are precision-ground and splashed to meet limited dimensional tolerances required for electronic product packaging, frequently to micrometer-level monotony.
Through-hole boring, laser cutting, and surface pattern make it possible for assimilation into multilayer plans and crossbreed circuits.
A vital step in substrate manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surfaces at raised temperature levels in a regulated environment, creating a strong user interface ideal for high-current applications.
Different techniques like active steel brazing (AMB) make use of titanium-containing solders to boost adhesion and thermal exhaustion resistance, particularly under repeated power cycling.
Correct interfacial design makes certain reduced thermal resistance and high mechanical dependability in operating devices.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Administration in Power Electronics
AlN substratums master handling heat created by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electrical automobiles, renewable resource inverters, and telecoms framework.
Reliable heat extraction avoids local hotspots, minimizes thermal anxiety, and extends tool lifetime by alleviating electromigration and delamination threats.
Compared to conventional Al ₂ O ₃ substrates, AlN makes it possible for smaller bundle sizes and higher power thickness due to its premium thermal conductivity, permitting developers to press performance boundaries without compromising integrity.
In LED lighting and laser diodes, where junction temperature directly influences effectiveness and shade stability, AlN substratums substantially improve luminescent result and functional life expectancy.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) additionally closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical tension during thermal biking.
3.2 Electrical and Mechanical Reliability
Past thermal performance, AlN uses low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad regularity variety, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against dampness ingress, removing deterioration risks in moist settings– an essential benefit over organic substrates.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and solidity (HV ≈ 1200), making sure resilience throughout handling, assembly, and field procedure.
These characteristics collectively contribute to improved system integrity, lowered failure rates, and lower total cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Systems
AlN ceramic substrates are currently conventional in advanced power modules for commercial motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid automobiles.
In aerospace and defense, they sustain radar systems, digital war devices, and satellite interactions, where performance under extreme problems is non-negotiable.
Clinical imaging equipment, consisting of X-ray generators and MRI systems, also gain from AlN’s radiation resistance and signal integrity.
As electrification fads speed up throughout transport and energy fields, demand for AlN substrates continues to grow, driven by the need for compact, efficient, and reputable power electronic devices.
4.2 Arising Combination and Lasting Development
Future innovations concentrate on integrating AlN right into three-dimensional product packaging architectures, ingrained passive elements, and heterogeneous combination systems integrating Si, SiC, and GaN gadgets.
Research into nanostructured AlN movies and single-crystal substratums aims to more increase thermal conductivity towards academic limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Efforts to decrease manufacturing expenses through scalable powder synthesis, additive manufacturing of intricate ceramic frameworks, and recycling of scrap AlN are gaining momentum to boost sustainability.
Furthermore, modeling devices using finite element analysis (FEA) and artificial intelligence are being used to enhance substrate layout for certain thermal and electrical loads.
In conclusion, light weight aluminum nitride ceramic substrates represent a cornerstone innovation in contemporary electronic devices, distinctly linking the void between electrical insulation and outstanding thermal transmission.
Their role in allowing high-efficiency, high-reliability power systems emphasizes their tactical value in the recurring evolution of digital and power innovations.
