Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has acquired extensive acknowledgment for its outstanding thermal conductivity, electrical insulation, and mechanical security at elevated temperatures. With a hexagonal wurtzite crystal structure, AlN exhibits a distinct combination of properties that make it one of the most excellent substrate product for applications in electronic devices, optoelectronics, power components, and high-temperature environments. Its capacity to efficiently dissipate heat while maintaining exceptional dielectric stamina settings AlN as a premium choice to typical ceramic substrates such as alumina and beryllium oxide. This write-up explores the basic attributes of aluminum nitride ceramics, looks into manufacture strategies, and highlights its crucial functions across advanced technological domains.

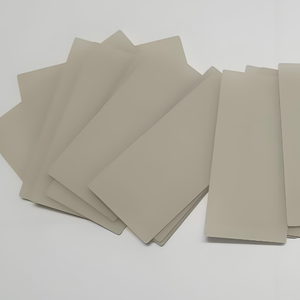

(Aluminum Nitride Ceramics)
Crystal Framework and Fundamental Feature
The performance of light weight aluminum nitride as a substratum material is largely dictated by its crystalline framework and innate physical buildings. AlN takes on a wurtzite-type lattice made up of alternating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically surpassing 180 W/(m · K), with some high-purity samples accomplishing over 320 W/(m · K). This value substantially exceeds those of other commonly made use of ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal performance, AlN possesses a wide bandgap of around 6.2 eV, resulting in excellent electrical insulation homes even at heats. It additionally shows low thermal development (CTE ≈ 4.5 × 10 â»â¶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor gadget product packaging. Furthermore, AlN exhibits high chemical inertness and resistance to molten metals, improving its suitability for rough environments. These mixed features establish AlN as a leading prospect for high-power digital substratums and thermally handled systems.
Manufacture and Sintering Technologies
Making high-quality light weight aluminum nitride porcelains requires precise powder synthesis and sintering methods to accomplish thick microstructures with minimal pollutants. Because of its covalent bonding nature, AlN does not quickly compress through standard pressureless sintering. Therefore, sintering aids such as yttrium oxide (Y TWO O SIX), calcium oxide (CaO), or rare planet aspects are commonly added to promote liquid-phase sintering and improve grain border diffusion.
The manufacture process normally begins with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are then crushed, formed via methods like tape casting or injection molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pressing or stimulate plasma sintering (SPS) can further boost density and thermal conductivity by reducing porosity and promoting grain positioning. Advanced additive manufacturing techniques are also being explored to produce complex-shaped AlN elements with tailored thermal management capabilities.
Application in Electronic Product Packaging and Power Modules
One of one of the most noticeable uses of light weight aluminum nitride ceramics is in electronic packaging, particularly for high-power tools such as insulated gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness increase in modern electronic devices, effective warmth dissipation becomes critical to ensure reliability and long life. AlN substratums offer an optimum solution by incorporating high thermal conductivity with superb electric isolation, preventing brief circuits and thermal runaway conditions.
Furthermore, AlN-based straight adhered copper (DBC) and energetic metal brazed (AMB) substrates are progressively employed in power module styles for electrical cars, renewable resource inverters, and industrial electric motor drives. Contrasted to conventional alumina or silicon nitride substratums, AlN provides quicker warmth transfer and far better compatibility with silicon chip coefficients of thermal expansion, thus reducing mechanical tension and enhancing total system performance. Ongoing research aims to enhance the bonding stamina and metallization methods on AlN surface areas to more expand its application extent.
Use in Optoelectronic and High-Temperature Gadget
Beyond electronic product packaging, aluminum nitride porcelains play an important duty in optoelectronic and high-temperature applications because of their transparency to ultraviolet (UV) radiation and thermal security. AlN is commonly made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications requiring sanitation, sensing, and optical communication. Its broad bandgap and low absorption coefficient in the UV range make it a suitable candidate for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capacity to function accurately at temperature levels exceeding 1000 ° C makes it appropriate for usage in sensors, thermoelectric generators, and elements exposed to extreme thermal lots. In aerospace and defense markets, AlN-based sensing unit plans are used in jet engine surveillance systems and high-temperature control devices where conventional products would certainly fail. Continuous innovations in thin-film deposition and epitaxial growth strategies are broadening the possibility of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Integrity
A key consideration for any type of substrate material is its lasting integrity under operational stresses. Light weight aluminum nitride demonstrates remarkable environmental security contrasted to many other ceramics. It is highly immune to deterioration from acids, alkalis, and molten steels, making sure toughness in aggressive chemical settings. However, AlN is prone to hydrolysis when exposed to moisture at elevated temperature levels, which can degrade its surface and lower thermal performance.
To mitigate this issue, safety finishings such as silicon nitride (Si ₃ N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are frequently put on improve moisture resistance. Furthermore, mindful securing and product packaging approaches are applied throughout gadget setting up to maintain the honesty of AlN substrates throughout their service life. As ecological policies come to be a lot more stringent, the non-toxic nature of AlN additionally places it as a preferred alternative to beryllium oxide, which poses wellness risks throughout processing and disposal.
Verdict
Light weight aluminum nitride ceramics represent a class of innovative products distinctly fit to address the expanding needs for effective thermal administration and electrical insulation in high-performance electronic and optoelectronic systems. Their outstanding thermal conductivity, chemical security, and compatibility with semiconductor technologies make them one of the most suitable substrate material for a variety of applications– from vehicle power modules to deep UV LEDs and high-temperature sensors. As manufacture innovations remain to progress and affordable manufacturing techniques grow, the fostering of AlN substratums is anticipated to rise substantially, driving innovation in next-generation digital and photonic devices.
