1. Principles of Foam Generation and the Role in Lightweight Concrete Systems
1.1 Principles of Air Entrainment and Cellular Structure Formation

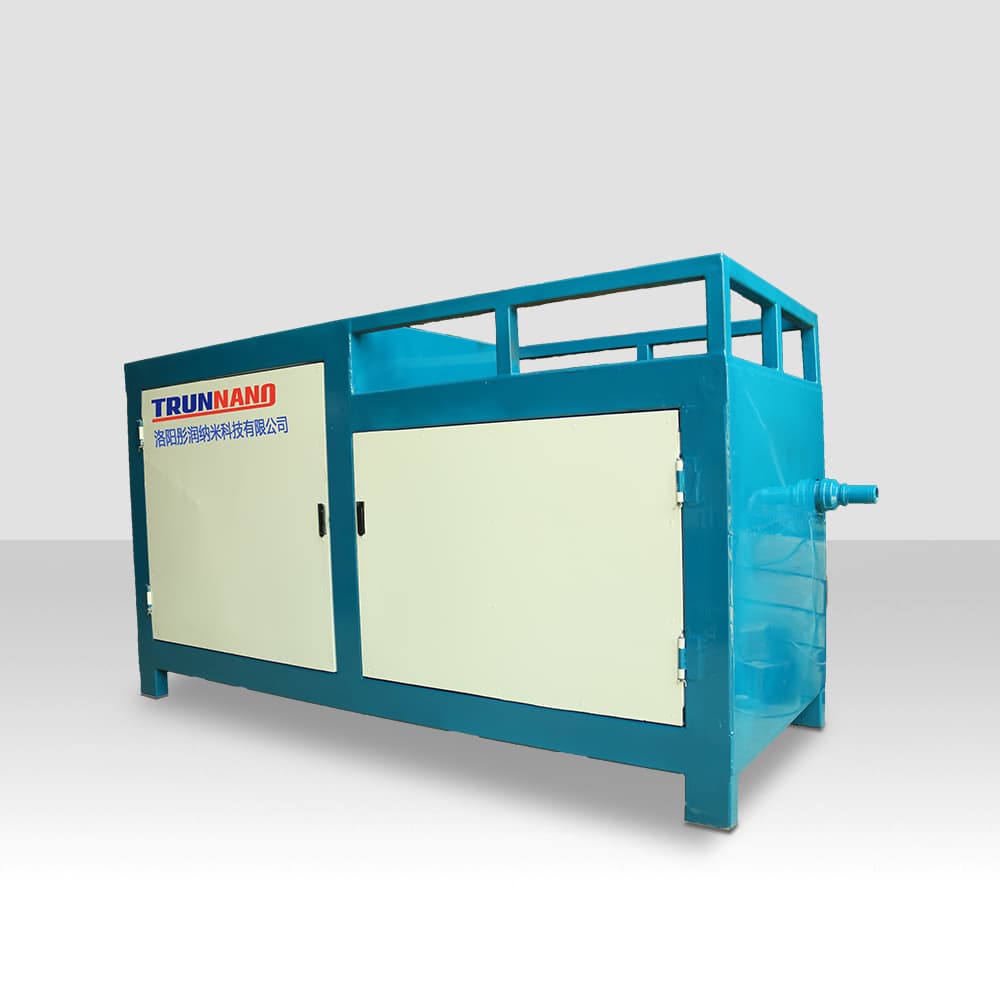

(Lightweight Concrete Foam Generators)
Lightweight concrete, a class of building and construction materials characterized by decreased density and enhanced thermal insulation, counts essentially on the controlled intro of air or gas gaps within a cementitious matrix– a process referred to as frothing.
The production of these consistently distributed, secure air cells is accomplished via making use of a specialized device known as a foam generator, which produces penalty, microscale bubbles that are subsequently mixed right into the concrete slurry.
These bubbles, commonly ranging from 50 to 500 micrometers in size, come to be completely entrained upon cement hydration, resulting in a mobile concrete structure with considerably reduced unit weight– commonly in between 300 kg/m three and 1,800 kg/m FIVE– compared to standard concrete (~ 2,400 kg/m ³).
The foam generator is not merely a complementary device yet a crucial engineering element that identifies the top quality, consistency, and efficiency of the final lightweight concrete product.
The procedure starts with a fluid frothing agent, generally a protein-based or synthetic surfactant remedy, which is presented right into the generator where it is mechanically or pneumatically distributed into a thick foam through high shear or compressed air shot.
The security and bubble size circulation of the produced foam straight influence vital product buildings such as compressive stamina, thermal conductivity, and workability.
1.2 Category and Functional Systems of Foam Generators
Foam generators are extensively categorized right into three key kinds based upon their operational principles: low-pressure (or wet-film), high-pressure (or vibrant), and rotary (or centrifugal) systems.
Low-pressure generators utilize a porous tool– such as a great mesh, material, or ceramic plate– through which pressed air is forced, creating bubbles as the frothing service streams over the surface area.
This technique generates fairly big, much less consistent bubbles and is commonly used for lower-grade applications where accurate control is much less vital.
High-pressure systems, on the other hand, utilize a nozzle-based design where a high-velocity stream of pressed air shears the lathering liquid right into a penalty, uniform foam with slim bubble dimension circulation.
These systems offer exceptional control over foam density and stability, making them optimal for structural-grade lightweight concrete and precast applications.

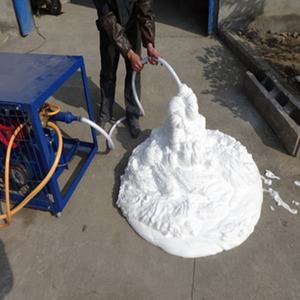

( Lightweight Concrete Foam Generators)
Rotating foam generators use a spinning disk or drum that flings the foaming option into a stream of air, creating bubbles with mechanical diffusion.
While much less accurate than high-pressure systems, rotary generators are valued for their robustness, simplicity of maintenance, and continuous result, suitable for large-scale on-site putting operations.
The selection of foam generator kind depends upon project-specific requirements, including desired concrete thickness, production volume, and performance specs.
2. Material Science Behind Foam Stability and Concrete Performance
2.1 Foaming Agents and Interfacial Chemistry
The performance of a foam generator is inherently connected to the chemical make-up and physical behavior of the foaming agent.
Frothing representatives are surfactants that decrease the surface area tension of water, allowing the development of stable air-liquid user interfaces.
Protein-based representatives, derived from hydrolyzed keratin or albumin, create long lasting, flexible foam movies with superb security and are usually liked in structural applications.
Synthetic representatives, such as alkyl sulfonates or ethoxylated alcohols, use faster foam generation and lower cost yet might produce less secure bubbles under extended mixing or negative ecological problems.
The molecular framework of the surfactant establishes the density and mechanical strength of the lamellae (slim fluid films) surrounding each bubble, which should stand up to coalescence and water drainage throughout mixing and treating.
Additives such as thickness modifiers, stabilizers, and pH barriers are frequently included into lathering services to boost foam determination and compatibility with concrete chemistry.
2.2 Influence of Foam Characteristics on Concrete Residence
The physical features of the created foam– bubble dimension, dimension circulation, air web content, and foam density– straight dictate the macroscopic behavior of lightweight concrete.
Smaller, consistently dispersed bubbles enhance mechanical stamina by decreasing stress concentration factors and producing a much more uniform microstructure.
On the other hand, bigger or uneven bubbles can function as imperfections, minimizing compressive stamina and boosting permeability.
Foam security is just as essential; premature collapse or coalescence throughout blending result in non-uniform density, partition, and reduced insulation efficiency.
The air-void system likewise impacts thermal conductivity, with finer, closed-cell frameworks offering premium insulation as a result of entraped air’s reduced thermal diffusivity.
In addition, the water web content of the foam affects the water-cement ratio of the final mix, requiring precise calibration to avoid damaging the concrete matrix or delaying hydration.
Advanced foam generators currently incorporate real-time surveillance and feedback systems to maintain consistent foam outcome, making certain reproducibility throughout batches.
3. Integration in Modern Construction and Industrial Applications
3.1 Structural and Non-Structural Uses Foamed Concrete
Lightweight concrete generated by means of foam generators is utilized across a broad spectrum of building and construction applications, varying from insulation panels and void filling to load-bearing walls and pavement systems.
In building envelopes, frothed concrete gives exceptional thermal and acoustic insulation, adding to energy-efficient designs and lowered a/c loads.
Its reduced thickness also reduces structural dead load, enabling smaller sized foundations and longer spans in skyscraper and bridge building and construction.
In civil design, it is made use of for trench backfilling, tunneling, and slope stabilization, where its self-leveling and low-stress attributes prevent ground disturbance and improve security.
Precast producers make use of high-precision foam generators to create light-weight blocks, panels, and building elements with tight dimensional tolerances and consistent top quality.
Moreover, foamed concrete displays intrinsic fire resistance because of its low thermal conductivity and lack of natural parts, making it suitable for fire-rated assemblies and passive fire security systems.
3.2 Automation, Scalability, and On-Site Production Equipments
Modern building needs fast, scalable, and reputable production of light-weight concrete, driving the integration of foam generators into computerized batching and pumping systems.
Completely automated plants can synchronize foam generation with cement blending, water dosing, and additive injection, making it possible for constant manufacturing with minimal human treatment.
Mobile foam generator devices are significantly deployed on building websites, enabling on-demand fabrication of foamed concrete straight at the factor of usage, minimizing transport costs and material waste.
These systems are often geared up with digital controls, remote surveillance, and data logging capabilities to ensure conformity with design requirements and high quality requirements.
The scalability of foam generation technology– from tiny mobile systems to industrial-scale systems– supports its fostering in both developed and emerging markets, advertising sustainable structure techniques globally.
4. Technical Innovations and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging technologies in foam generator layout focus on boosting accuracy, effectiveness, and flexibility via digitalization and sensing unit integration.
Smart foam generators equipped with stress sensors, flow meters, and optical bubble analyzers can dynamically readjust air-to-liquid ratios and monitor foam top quality in real time.
Machine learning algorithms are being checked out to predict foam habits based on environmental conditions, resources variations, and historic performance data.
Such developments aim to lessen batch-to-batch irregularity and optimize material efficiency, specifically in high-stakes applications like nuclear protecting or overseas building.
4.2 Sustainability, Environmental Influence, and Environment-friendly Product Integration
As the building industry moves toward decarbonization, foam generators contribute in reducing the environmental footprint of concrete.
By reducing product density, less concrete is required per unit quantity, directly reducing CO two exhausts connected with concrete manufacturing.
Moreover, lathered concrete can include supplemental cementitious products (SCMs) such as fly ash, slag, or silica fume, improving sustainability without compromising performance.
Research study is likewise underway to create bio-based lathering representatives stemmed from renewable resources, decreasing dependence on petrochemical surfactants.
Future advancements might include energy-efficient foam generation approaches, combination with carbon capture innovations, and recyclable concrete formulations made it possible for by secure cellular structures.
Finally, the lightweight concrete foam generator is even more than a mechanical gadget– it is a critical enabler of advanced material engineering in modern-day building and construction.
By precisely controlling the architecture of air gaps at the microscale, it changes traditional concrete into a multifunctional, sustainable, and high-performance product.
As technology evolves, foam generators will certainly remain to drive development in structure scientific research, infrastructure durability, and ecological stewardship.
