1. Essential Residences and Nanoscale Actions of Silicon at the Submicron Frontier
1.1 Quantum Confinement and Electronic Framework Change

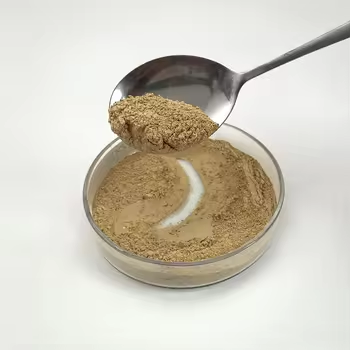

(Nano-Silicon Powder)
Nano-silicon powder, made up of silicon bits with particular dimensions listed below 100 nanometers, stands for a standard shift from bulk silicon in both physical actions and functional utility.
While bulk silicon is an indirect bandgap semiconductor with a bandgap of approximately 1.12 eV, nano-sizing causes quantum arrest effects that essentially change its electronic and optical residential properties.
When the bit size methods or drops below the exciton Bohr distance of silicon (~ 5 nm), fee service providers end up being spatially constrained, leading to a widening of the bandgap and the introduction of noticeable photoluminescence– a sensation lacking in macroscopic silicon.
This size-dependent tunability makes it possible for nano-silicon to release light throughout the noticeable range, making it an appealing prospect for silicon-based optoelectronics, where conventional silicon stops working due to its inadequate radiative recombination effectiveness.
Moreover, the boosted surface-to-volume proportion at the nanoscale improves surface-related sensations, consisting of chemical sensitivity, catalytic activity, and communication with electromagnetic fields.
These quantum results are not simply scholastic curiosities yet create the foundation for next-generation applications in power, noticing, and biomedicine.
1.2 Morphological Diversity and Surface Area Chemistry
Nano-silicon powder can be synthesized in numerous morphologies, including spherical nanoparticles, nanowires, permeable nanostructures, and crystalline quantum dots, each offering unique benefits relying on the target application.
Crystalline nano-silicon generally maintains the ruby cubic framework of mass silicon however displays a greater thickness of surface issues and dangling bonds, which should be passivated to stabilize the material.
Surface area functionalization– commonly achieved through oxidation, hydrosilylation, or ligand add-on– plays a crucial role in identifying colloidal security, dispersibility, and compatibility with matrices in compounds or biological atmospheres.
As an example, hydrogen-terminated nano-silicon reveals high sensitivity and is prone to oxidation in air, whereas alkyl- or polyethylene glycol (PEG)-coated particles display improved stability and biocompatibility for biomedical usage.

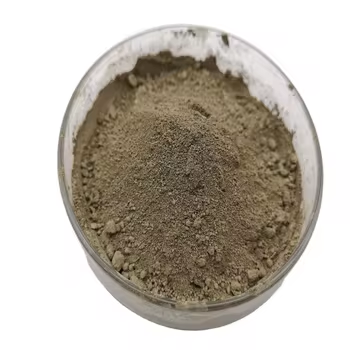

( Nano-Silicon Powder)
The presence of an indigenous oxide layer (SiOâ‚“) on the particle surface area, even in very little quantities, dramatically influences electrical conductivity, lithium-ion diffusion kinetics, and interfacial reactions, especially in battery applications.
Understanding and regulating surface chemistry is as a result essential for utilizing the full capacity of nano-silicon in sensible systems.
2. Synthesis Approaches and Scalable Manufacture Techniques
2.1 Top-Down Strategies: Milling, Etching, and Laser Ablation
The manufacturing of nano-silicon powder can be broadly categorized into top-down and bottom-up techniques, each with distinct scalability, pureness, and morphological control qualities.
Top-down techniques involve the physical or chemical decrease of bulk silicon into nanoscale fragments.
High-energy round milling is a widely utilized commercial method, where silicon portions go through intense mechanical grinding in inert atmospheres, causing micron- to nano-sized powders.
While affordable and scalable, this approach often introduces crystal flaws, contamination from grating media, and broad particle dimension circulations, calling for post-processing purification.
Magnesiothermic decrease of silica (SiO TWO) followed by acid leaching is an additional scalable route, particularly when making use of all-natural or waste-derived silica resources such as rice husks or diatoms, using a lasting pathway to nano-silicon.
Laser ablation and responsive plasma etching are a lot more precise top-down approaches, efficient in generating high-purity nano-silicon with regulated crystallinity, however at higher price and reduced throughput.
2.2 Bottom-Up Approaches: Gas-Phase and Solution-Phase Development
Bottom-up synthesis allows for greater control over fragment size, form, and crystallinity by building nanostructures atom by atom.
Chemical vapor deposition (CVD) and plasma-enhanced CVD (PECVD) make it possible for the development of nano-silicon from aeriform forerunners such as silane (SiH ₄) or disilane (Si ₂ H ₆), with criteria like temperature level, stress, and gas flow dictating nucleation and development kinetics.
These techniques are especially reliable for creating silicon nanocrystals installed in dielectric matrices for optoelectronic gadgets.
Solution-phase synthesis, including colloidal courses making use of organosilicon compounds, enables the manufacturing of monodisperse silicon quantum dots with tunable exhaust wavelengths.
Thermal disintegration of silane in high-boiling solvents or supercritical fluid synthesis likewise yields high-grade nano-silicon with narrow dimension distributions, ideal for biomedical labeling and imaging.
While bottom-up techniques usually generate premium worldly top quality, they face difficulties in massive production and cost-efficiency, requiring continuous research into hybrid and continuous-flow procedures.
3. Power Applications: Changing Lithium-Ion and Beyond-Lithium Batteries
3.1 Duty in High-Capacity Anodes for Lithium-Ion Batteries
One of one of the most transformative applications of nano-silicon powder depends on energy storage space, particularly as an anode material in lithium-ion batteries (LIBs).
Silicon supplies an academic particular capability of ~ 3579 mAh/g based on the formation of Li â‚â‚… Si Four, which is nearly 10 times higher than that of conventional graphite (372 mAh/g).
However, the big volume expansion (~ 300%) during lithiation triggers particle pulverization, loss of electrical contact, and continuous solid electrolyte interphase (SEI) formation, leading to fast capability discolor.
Nanostructuring reduces these problems by shortening lithium diffusion courses, suiting strain more effectively, and decreasing crack probability.
Nano-silicon in the kind of nanoparticles, permeable frameworks, or yolk-shell structures makes it possible for relatively easy to fix cycling with boosted Coulombic efficiency and cycle life.
Commercial battery modern technologies now integrate nano-silicon blends (e.g., silicon-carbon composites) in anodes to enhance power thickness in customer electronic devices, electric automobiles, and grid storage systems.
3.2 Possible in Sodium-Ion, Potassium-Ion, and Solid-State Batteries
Beyond lithium-ion systems, nano-silicon is being explored in emerging battery chemistries.
While silicon is less reactive with salt than lithium, nano-sizing enhances kinetics and enables limited Na âş insertion, making it a prospect for sodium-ion battery anodes, particularly when alloyed or composited with tin or antimony.
In solid-state batteries, where mechanical stability at electrode-electrolyte user interfaces is important, nano-silicon’s capability to undertake plastic contortion at small ranges minimizes interfacial tension and improves get in touch with maintenance.
In addition, its compatibility with sulfide- and oxide-based strong electrolytes opens methods for much safer, higher-energy-density storage remedies.
Research continues to maximize user interface design and prelithiation approaches to take full advantage of the longevity and efficiency of nano-silicon-based electrodes.
4. Arising Frontiers in Photonics, Biomedicine, and Compound Products
4.1 Applications in Optoelectronics and Quantum Light
The photoluminescent buildings of nano-silicon have rejuvenated efforts to create silicon-based light-emitting gadgets, a long-lasting difficulty in integrated photonics.
Unlike mass silicon, nano-silicon quantum dots can display efficient, tunable photoluminescence in the noticeable to near-infrared array, enabling on-chip source of lights compatible with complementary metal-oxide-semiconductor (CMOS) innovation.
These nanomaterials are being incorporated right into light-emitting diodes (LEDs), photodetectors, and waveguide-coupled emitters for optical interconnects and picking up applications.
Furthermore, surface-engineered nano-silicon displays single-photon exhaust under specific problem arrangements, placing it as a possible system for quantum information processing and secure communication.
4.2 Biomedical and Ecological Applications
In biomedicine, nano-silicon powder is getting interest as a biocompatible, naturally degradable, and non-toxic alternative to heavy-metal-based quantum dots for bioimaging and medication delivery.
Surface-functionalized nano-silicon particles can be designed to target specific cells, launch therapeutic agents in action to pH or enzymes, and give real-time fluorescence monitoring.
Their destruction right into silicic acid (Si(OH)FOUR), a naturally occurring and excretable substance, minimizes long-term toxicity problems.
Additionally, nano-silicon is being checked out for ecological remediation, such as photocatalytic destruction of pollutants under noticeable light or as a lowering representative in water treatment processes.
In composite materials, nano-silicon improves mechanical stamina, thermal stability, and wear resistance when included into metals, ceramics, or polymers, particularly in aerospace and automotive components.
In conclusion, nano-silicon powder stands at the crossway of fundamental nanoscience and industrial innovation.
Its distinct mix of quantum impacts, high reactivity, and convenience throughout power, electronic devices, and life sciences emphasizes its function as a crucial enabler of next-generation modern technologies.
As synthesis techniques advancement and integration challenges relapse, nano-silicon will continue to drive development toward higher-performance, lasting, and multifunctional material systems.
