1. Product Principles and Structural Characteristic
1.1 Crystal Chemistry and Polymorphism

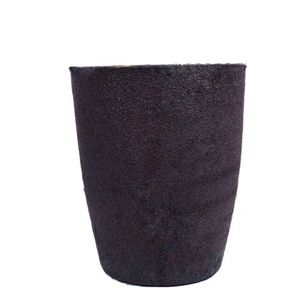

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral latticework, developing among one of the most thermally and chemically durable materials understood.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, confer extraordinary firmness, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is chosen because of its ability to maintain architectural stability under severe thermal gradients and destructive molten atmospheres.
Unlike oxide ceramics, SiC does not undertake disruptive phase transitions as much as its sublimation factor (~ 2700 ° C), making it suitable for sustained procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining characteristic of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises uniform warmth circulation and lessens thermal anxiety throughout rapid heating or air conditioning.
This residential property contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to breaking under thermal shock.
SiC additionally exhibits exceptional mechanical strength at elevated temperature levels, retaining over 80% of its room-temperature flexural toughness (as much as 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal expansion (~ 4.0 × 10 â»â¶/ K) further boosts resistance to thermal shock, a crucial consider repeated cycling in between ambient and functional temperature levels.
In addition, SiC shows premium wear and abrasion resistance, making sure long service life in atmospheres entailing mechanical handling or stormy thaw circulation.
2. Manufacturing Methods and Microstructural Control

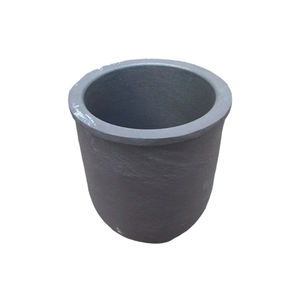

( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Methods
Industrial SiC crucibles are primarily produced through pressureless sintering, response bonding, or hot pressing, each offering unique advantages in cost, pureness, and performance.
Pressureless sintering involves compacting great SiC powder with sintering aids such as boron and carbon, complied with by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical density.
This technique yields high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is created by penetrating a porous carbon preform with molten silicon, which reacts to create β-SiC sitting, resulting in a compound of SiC and recurring silicon.
While a little reduced in thermal conductivity due to metallic silicon additions, RBSC provides superb dimensional stability and lower manufacturing price, making it prominent for large commercial use.
Hot-pressed SiC, though more expensive, gives the greatest thickness and purity, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface High Quality and Geometric Precision
Post-sintering machining, consisting of grinding and washing, ensures specific dimensional resistances and smooth internal surfaces that reduce nucleation websites and decrease contamination danger.
Surface roughness is very carefully managed to stop thaw attachment and facilitate very easy release of strengthened products.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is enhanced to balance thermal mass, structural stamina, and compatibility with heater burner.
Customized designs accommodate certain thaw volumes, heating profiles, and material sensitivity, guaranteeing optimal efficiency throughout diverse industrial processes.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and lack of issues like pores or splits.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Environments
SiC crucibles exhibit outstanding resistance to chemical attack by molten steels, slags, and non-oxidizing salts, exceeding conventional graphite and oxide ceramics.
They are secure in contact with molten aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of low interfacial power and formation of protective surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles prevent metallic contamination that could weaken digital residential properties.
However, under extremely oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO â‚‚), which might respond even more to form low-melting-point silicates.
For that reason, SiC is finest matched for neutral or reducing environments, where its stability is maximized.
3.2 Limitations and Compatibility Considerations
In spite of its toughness, SiC is not universally inert; it reacts with certain molten products, especially iron-group metals (Fe, Ni, Co) at high temperatures with carburization and dissolution processes.
In liquified steel processing, SiC crucibles deteriorate swiftly and are for that reason avoided.
In a similar way, antacids and alkaline earth steels (e.g., Li, Na, Ca) can minimize SiC, launching carbon and creating silicides, limiting their usage in battery material synthesis or reactive steel casting.
For liquified glass and ceramics, SiC is usually compatible however may present trace silicon right into extremely sensitive optical or electronic glasses.
Recognizing these material-specific interactions is necessary for choosing the appropriate crucible kind and guaranteeing process pureness and crucible longevity.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are vital in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to prolonged direct exposure to molten silicon at ~ 1420 ° C.
Their thermal security makes certain uniform condensation and reduces dislocation density, straight influencing solar efficiency.
In factories, SiC crucibles are used for melting non-ferrous metals such as aluminum and brass, supplying longer life span and decreased dross development contrasted to clay-graphite options.
They are additionally utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Fads and Advanced Product Combination
Emerging applications consist of the use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O ₃) are being applied to SiC surface areas to additionally enhance chemical inertness and stop silicon diffusion in ultra-high-purity procedures.
Additive manufacturing of SiC elements making use of binder jetting or stereolithography is under development, appealing facility geometries and quick prototyping for specialized crucible designs.
As need grows for energy-efficient, long lasting, and contamination-free high-temperature handling, silicon carbide crucibles will certainly remain a cornerstone modern technology in advanced products producing.
In conclusion, silicon carbide crucibles represent a critical allowing element in high-temperature industrial and clinical procedures.
Their unequaled combination of thermal stability, mechanical toughness, and chemical resistance makes them the material of choice for applications where efficiency and reliability are critical.
