1. Crystal Framework and Bonding Nature of Ti â‚‚ AlC
1.1 Limit Phase Family Members and Atomic Piling Series

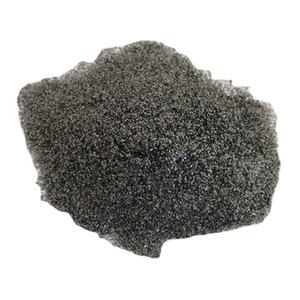

(Ti2AlC MAX Phase Powder)
Ti â‚‚ AlC belongs to limit stage family, a class of nanolaminated ternary carbides and nitrides with the general formula Mâ‚™ â‚Šâ‚ AXâ‚™, where M is a very early shift metal, A is an A-group element, and X is carbon or nitrogen.
In Ti ₂ AlC, titanium (Ti) functions as the M component, aluminum (Al) as the A component, and carbon (C) as the X component, developing a 211 framework (n=1) with alternating layers of Ti ₆ C octahedra and Al atoms piled along the c-axis in a hexagonal lattice.
This one-of-a-kind layered architecture incorporates solid covalent bonds within the Ti– C layers with weak metal bonds in between the Ti and Al aircrafts, resulting in a hybrid material that exhibits both ceramic and metallic features.
The durable Ti– C covalent network provides high rigidity, thermal stability, and oxidation resistance, while the metal Ti– Al bonding enables electric conductivity, thermal shock tolerance, and damage resistance uncommon in standard ceramics.
This duality emerges from the anisotropic nature of chemical bonding, which allows for energy dissipation systems such as kink-band formation, delamination, and basic aircraft splitting under stress, rather than devastating breakable fracture.
1.2 Digital Framework and Anisotropic Properties
The digital setup of Ti two AlC features overlapping d-orbitals from titanium and p-orbitals from carbon and light weight aluminum, leading to a high thickness of states at the Fermi degree and innate electric and thermal conductivity along the basic aircrafts.
This metallic conductivity– unusual in ceramic products– allows applications in high-temperature electrodes, existing collectors, and electro-magnetic protecting.
Home anisotropy is pronounced: thermal expansion, flexible modulus, and electric resistivity vary dramatically in between the a-axis (in-plane) and c-axis (out-of-plane) directions as a result of the split bonding.
For instance, thermal growth along the c-axis is less than along the a-axis, contributing to boosted resistance to thermal shock.
Moreover, the material presents a reduced Vickers hardness (~ 4– 6 Grade point average) contrasted to standard porcelains like alumina or silicon carbide, yet preserves a high Youthful’s modulus (~ 320 GPa), mirroring its distinct combination of soft qualities and tightness.
This balance makes Ti two AlC powder particularly suitable for machinable ceramics and self-lubricating composites.
( Ti2AlC MAX Phase Powder)
2. Synthesis and Handling of Ti Two AlC Powder
2.1 Solid-State and Advanced Powder Manufacturing Techniques
Ti â‚‚ AlC powder is largely synthesized via solid-state responses between elemental or compound precursors, such as titanium, aluminum, and carbon, under high-temperature problems (1200– 1500 ° C )in inert or vacuum cleaner atmospheres.
The reaction: 2Ti + Al + C → Ti ₂ AlC, must be very carefully controlled to avoid the formation of completing phases like TiC, Ti Three Al, or TiAl, which break down practical performance.
Mechanical alloying adhered to by heat therapy is an additional extensively made use of technique, where elemental powders are ball-milled to attain atomic-level mixing prior to annealing to create the MAX phase.
This approach enables fine bit size control and homogeneity, vital for innovative combination methods.
Extra sophisticated techniques, such as trigger plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, offer routes to phase-pure, nanostructured, or oriented Ti two AlC powders with customized morphologies.
Molten salt synthesis, particularly, permits reduced reaction temperatures and much better bit diffusion by acting as a change medium that enhances diffusion kinetics.
2.2 Powder Morphology, Purity, and Taking Care Of Factors to consider
The morphology of Ti two AlC powder– ranging from uneven angular bits to platelet-like or round granules– depends on the synthesis route and post-processing actions such as milling or category.
Platelet-shaped particles reflect the intrinsic layered crystal framework and are advantageous for strengthening composites or developing textured bulk materials.
High phase pureness is vital; even small amounts of TiC or Al two O six contaminations can substantially change mechanical, electric, and oxidation habits.
X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are regularly used to evaluate phase make-up and microstructure.
Because of light weight aluminum’s reactivity with oxygen, Ti â‚‚ AlC powder is vulnerable to surface area oxidation, creating a slim Al â‚‚ O two layer that can passivate the product but may hinder sintering or interfacial bonding in composites.
Therefore, storage space under inert ambience and processing in regulated environments are important to preserve powder integrity.
3. Useful Behavior and Performance Mechanisms
3.1 Mechanical Durability and Damages Resistance
Among one of the most amazing features of Ti â‚‚ AlC is its capacity to hold up against mechanical damages without fracturing catastrophically, a residential property referred to as “damages resistance” or “machinability” in ceramics.
Under tons, the material suits anxiety via devices such as microcracking, basic aircraft delamination, and grain limit moving, which dissipate energy and prevent fracture propagation.
This habits contrasts greatly with traditional ceramics, which generally fall short suddenly upon reaching their elastic limit.
Ti â‚‚ AlC components can be machined utilizing traditional tools without pre-sintering, an uncommon capacity amongst high-temperature ceramics, minimizing production prices and making it possible for complicated geometries.
In addition, it exhibits excellent thermal shock resistance as a result of low thermal growth and high thermal conductivity, making it suitable for components subjected to fast temperature level adjustments.
3.2 Oxidation Resistance and High-Temperature Security
At raised temperatures (as much as 1400 ° C in air), Ti ₂ AlC develops a protective alumina (Al two O THREE) scale on its surface area, which acts as a diffusion barrier versus oxygen access, significantly slowing down additional oxidation.
This self-passivating behavior is similar to that seen in alumina-forming alloys and is important for long-term security in aerospace and energy applications.
However, above 1400 ° C, the formation of non-protective TiO two and inner oxidation of aluminum can cause sped up destruction, limiting ultra-high-temperature usage.
In decreasing or inert settings, Ti two AlC keeps structural stability approximately 2000 ° C, demonstrating phenomenal refractory attributes.
Its resistance to neutron irradiation and reduced atomic number likewise make it a candidate product for nuclear fusion reactor components.
4. Applications and Future Technical Assimilation
4.1 High-Temperature and Structural Parts
Ti â‚‚ AlC powder is used to produce mass ceramics and finishes for extreme atmospheres, consisting of turbine blades, burner, and heater parts where oxidation resistance and thermal shock resistance are critical.
Hot-pressed or stimulate plasma sintered Ti two AlC displays high flexural strength and creep resistance, outmatching numerous monolithic ceramics in cyclic thermal loading scenarios.
As a coating material, it secures metallic substratums from oxidation and wear in aerospace and power generation systems.
Its machinability enables in-service repair and precision finishing, a considerable benefit over fragile ceramics that need ruby grinding.
4.2 Practical and Multifunctional Product Systems
Beyond architectural duties, Ti â‚‚ AlC is being explored in useful applications leveraging its electric conductivity and layered framework.
It functions as a precursor for manufacturing two-dimensional MXenes (e.g., Ti three C â‚‚ Tâ‚“) via discerning etching of the Al layer, enabling applications in energy storage, sensors, and electro-magnetic disturbance securing.
In composite products, Ti â‚‚ AlC powder improves the durability and thermal conductivity of ceramic matrix composites (CMCs) and steel matrix composites (MMCs).
Its lubricious nature under heat– as a result of simple basic aircraft shear– makes it suitable for self-lubricating bearings and moving parts in aerospace systems.
Arising research concentrates on 3D printing of Ti â‚‚ AlC-based inks for net-shape production of intricate ceramic components, pushing the boundaries of additive production in refractory materials.
In summary, Ti â‚‚ AlC MAX phase powder represents a paradigm shift in ceramic products science, linking the gap in between steels and porcelains via its split atomic architecture and hybrid bonding.
Its distinct combination of machinability, thermal security, oxidation resistance, and electric conductivity allows next-generation components for aerospace, power, and advanced production.
As synthesis and handling technologies mature, Ti two AlC will certainly play a significantly vital function in engineering products made for extreme and multifunctional environments.
