1. Essential Composition and Structural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Product Class

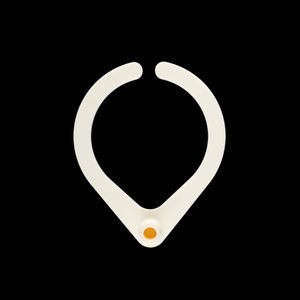

(Transparent Ceramics)
Quartz porcelains, likewise known as merged quartz or fused silica ceramics, are innovative inorganic materials stemmed from high-purity crystalline quartz (SiO TWO) that go through regulated melting and loan consolidation to develop a dense, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike traditional porcelains such as alumina or zirconia, which are polycrystalline and made up of multiple stages, quartz ceramics are mainly composed of silicon dioxide in a network of tetrahedrally coordinated SiO four systems, supplying outstanding chemical purity– frequently exceeding 99.9% SiO â‚‚.
The difference between integrated quartz and quartz porcelains hinges on processing: while fused quartz is typically a completely amorphous glass developed by fast cooling of liquified silica, quartz porcelains may involve regulated crystallization (devitrification) or sintering of fine quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with boosted mechanical robustness.
This hybrid method combines the thermal and chemical stability of fused silica with boosted crack sturdiness and dimensional security under mechanical load.
1.2 Thermal and Chemical Stability Mechanisms
The exceptional performance of quartz porcelains in extreme environments comes from the strong covalent Si– O bonds that create a three-dimensional network with high bond energy (~ 452 kJ/mol), conferring amazing resistance to thermal deterioration and chemical strike.
These products exhibit an exceptionally reduced coefficient of thermal expansion– about 0.55 × 10 â»â¶/ K over the range 20– 300 ° C– making them very resistant to thermal shock, a critical characteristic in applications involving rapid temperature cycling.
They keep architectural integrity from cryogenic temperature levels up to 1200 ° C in air, and also greater in inert environments, before softening begins around 1600 ° C.
Quartz ceramics are inert to most acids, including hydrochloric, nitric, and sulfuric acids, due to the security of the SiO two network, although they are at risk to assault by hydrofluoric acid and solid alkalis at raised temperature levels.
This chemical resilience, combined with high electrical resistivity and ultraviolet (UV) openness, makes them excellent for usage in semiconductor processing, high-temperature furnaces, and optical systems exposed to extreme conditions.
2. Production Processes and Microstructural Control

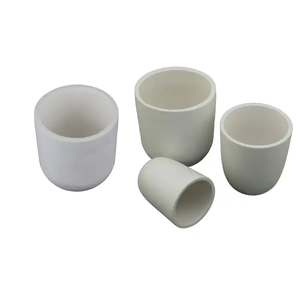

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz ceramics entails advanced thermal handling techniques developed to protect purity while accomplishing wanted thickness and microstructure.
One common approach is electrical arc melting of high-purity quartz sand, followed by controlled cooling to create integrated quartz ingots, which can after that be machined into elements.
For sintered quartz ceramics, submicron quartz powders are compacted via isostatic pushing and sintered at temperature levels between 1100 ° C and 1400 ° C, commonly with marginal ingredients to promote densification without inducing too much grain development or stage change.
An essential obstacle in processing is staying clear of devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite stages– which can endanger thermal shock resistance due to volume modifications during stage changes.
Producers employ specific temperature level control, quick air conditioning cycles, and dopants such as boron or titanium to subdue unwanted condensation and preserve a secure amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Fabrication
Recent developments in ceramic additive production (AM), particularly stereolithography (SHANTY TOWN) and binder jetting, have actually allowed the construction of intricate quartz ceramic parts with high geometric accuracy.
In these procedures, silica nanoparticles are put on hold in a photosensitive material or selectively bound layer-by-layer, complied with by debinding and high-temperature sintering to achieve complete densification.
This approach minimizes product waste and permits the creation of complex geometries– such as fluidic channels, optical cavities, or warm exchanger components– that are challenging or difficult to attain with standard machining.
Post-processing techniques, consisting of chemical vapor infiltration (CVI) or sol-gel finishing, are occasionally put on secure surface porosity and improve mechanical and ecological toughness.
These advancements are increasing the application extent of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and customized high-temperature fixtures.
3. Useful Characteristics and Efficiency in Extreme Environments
3.1 Optical Transparency and Dielectric Habits
Quartz ceramics exhibit special optical homes, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This openness occurs from the absence of electronic bandgap transitions in the UV-visible array and very little scattering as a result of homogeneity and low porosity.
In addition, they have superb dielectric buildings, with a low dielectric constant (~ 3.8 at 1 MHz) and very little dielectric loss, allowing their use as shielding elements in high-frequency and high-power digital systems, such as radar waveguides and plasma reactors.
Their capability to maintain electrical insulation at elevated temperature levels better boosts integrity sought after electrical environments.
3.2 Mechanical Actions and Long-Term Durability
In spite of their high brittleness– a common quality among porcelains– quartz porcelains demonstrate excellent mechanical toughness (flexural stamina up to 100 MPa) and exceptional creep resistance at high temperatures.
Their firmness (around 5.5– 6.5 on the Mohs scale) gives resistance to surface area abrasion, although treatment has to be taken throughout dealing with to prevent damaging or split proliferation from surface problems.
Ecological toughness is an additional vital advantage: quartz porcelains do not outgas dramatically in vacuum cleaner, resist radiation damage, and preserve dimensional security over prolonged exposure to thermal cycling and chemical settings.
This makes them favored products in semiconductor fabrication chambers, aerospace sensors, and nuclear instrumentation where contamination and failing must be decreased.
4. Industrial, Scientific, and Arising Technical Applications
4.1 Semiconductor and Photovoltaic Manufacturing Solutions
In the semiconductor industry, quartz porcelains are ubiquitous in wafer handling tools, including heating system tubes, bell jars, susceptors, and shower heads made use of in chemical vapor deposition (CVD) and plasma etching.
Their purity protects against metal contamination of silicon wafers, while their thermal security makes certain uniform temperature distribution throughout high-temperature processing actions.
In photovoltaic or pv manufacturing, quartz components are used in diffusion heaters and annealing systems for solar battery production, where constant thermal accounts and chemical inertness are essential for high return and effectiveness.
The need for bigger wafers and higher throughput has actually driven the development of ultra-large quartz ceramic structures with boosted homogeneity and minimized flaw thickness.
4.2 Aerospace, Defense, and Quantum Modern Technology Assimilation
Beyond industrial handling, quartz porcelains are utilized in aerospace applications such as rocket support windows, infrared domes, and re-entry automobile parts as a result of their capacity to stand up to extreme thermal gradients and aerodynamic tension.
In protection systems, their openness to radar and microwave frequencies makes them appropriate for radomes and sensor housings.
More recently, quartz ceramics have actually located duties in quantum innovations, where ultra-low thermal expansion and high vacuum cleaner compatibility are needed for precision optical dental caries, atomic catches, and superconducting qubit rooms.
Their ability to minimize thermal drift makes sure lengthy comprehensibility times and high measurement accuracy in quantum computer and sensing systems.
In recap, quartz porcelains represent a course of high-performance products that connect the void in between standard porcelains and specialized glasses.
Their unparalleled mix of thermal stability, chemical inertness, optical transparency, and electric insulation allows modern technologies operating at the limits of temperature level, purity, and precision.
As manufacturing techniques evolve and require grows for materials with the ability of standing up to increasingly extreme conditions, quartz ceramics will remain to play a foundational function ahead of time semiconductor, power, aerospace, and quantum systems.
